Field Conditioner with Rolling Baskets or Harrow

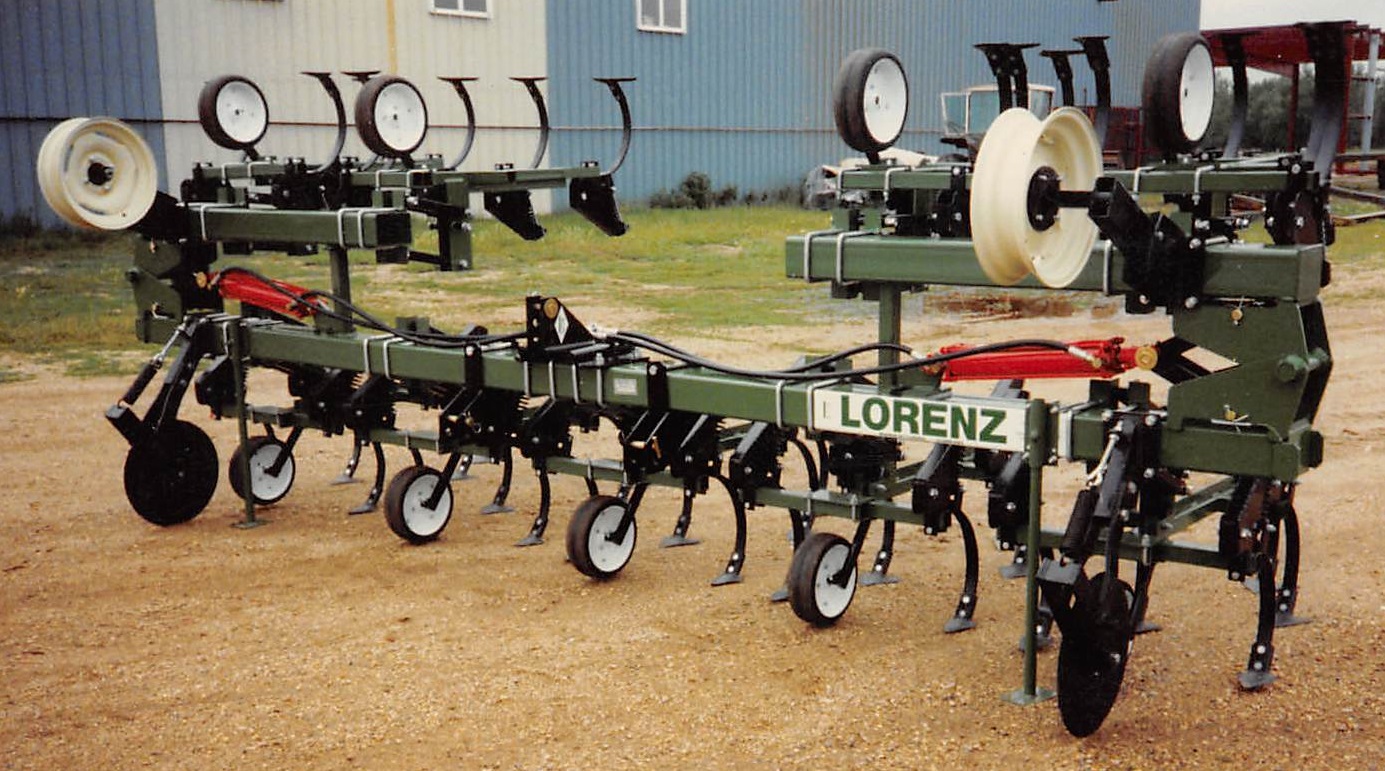

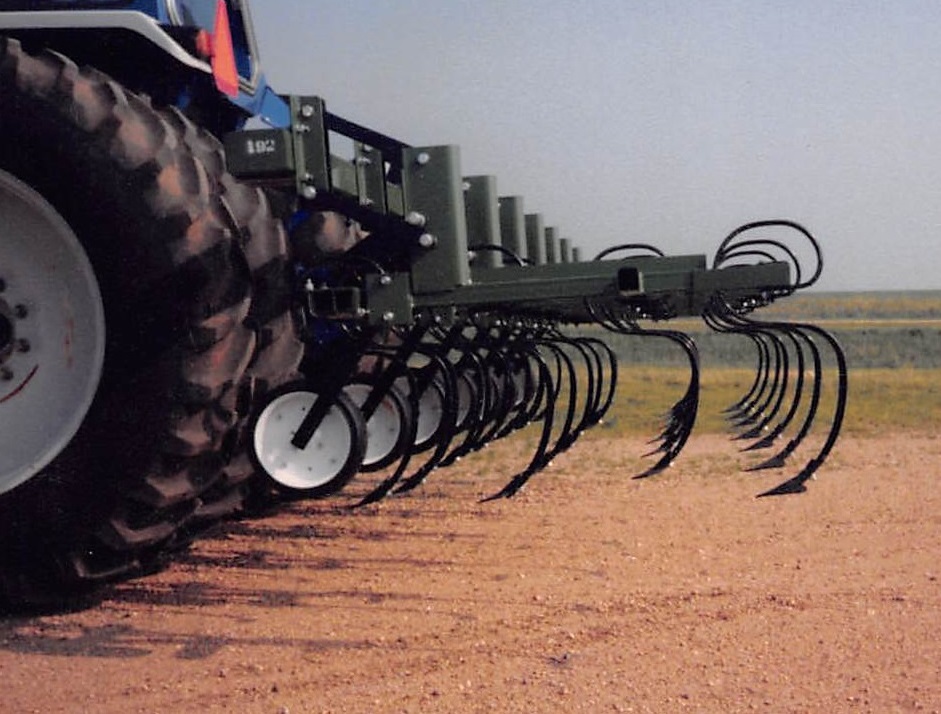

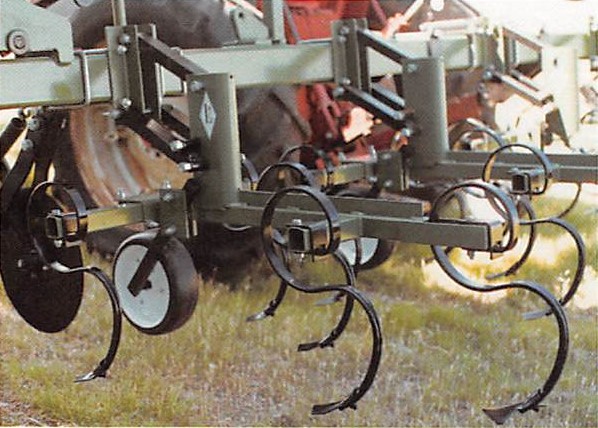

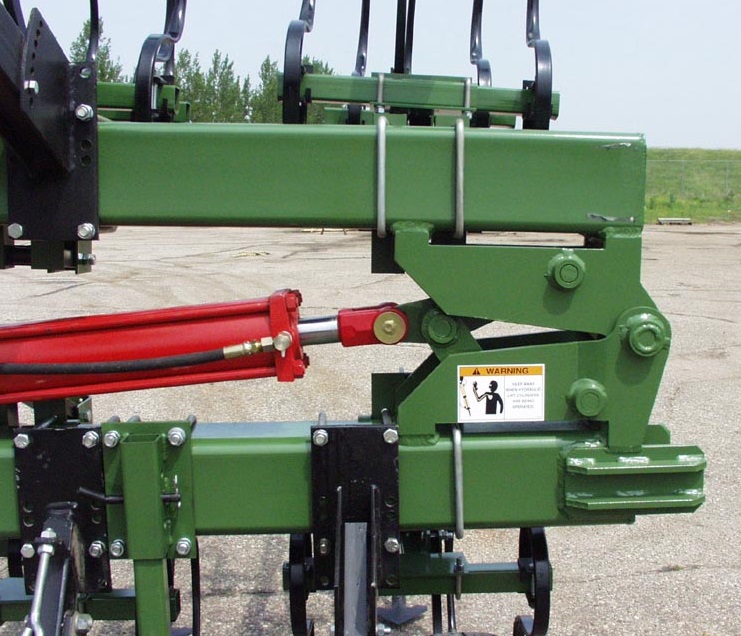

The Field Conditioner provides for excellent final seedbeds and added moisture conservation. The conditioners offer good results in breaking up soil and laying the weeds out to dry.  Options behind the Danish tine conditioner are either a rolling basket or tined harrow section.  The rolling baskets prepare the seedbed by eliminating pockets of air while easily rolling over rocks. The rolling baskets are for Lorenz cultivators only. The Field Conditioner is available in 3-pt. hitch or pull type models. Folding models include the hydraulic cylinders and hose lengths to the center of the tool bar.

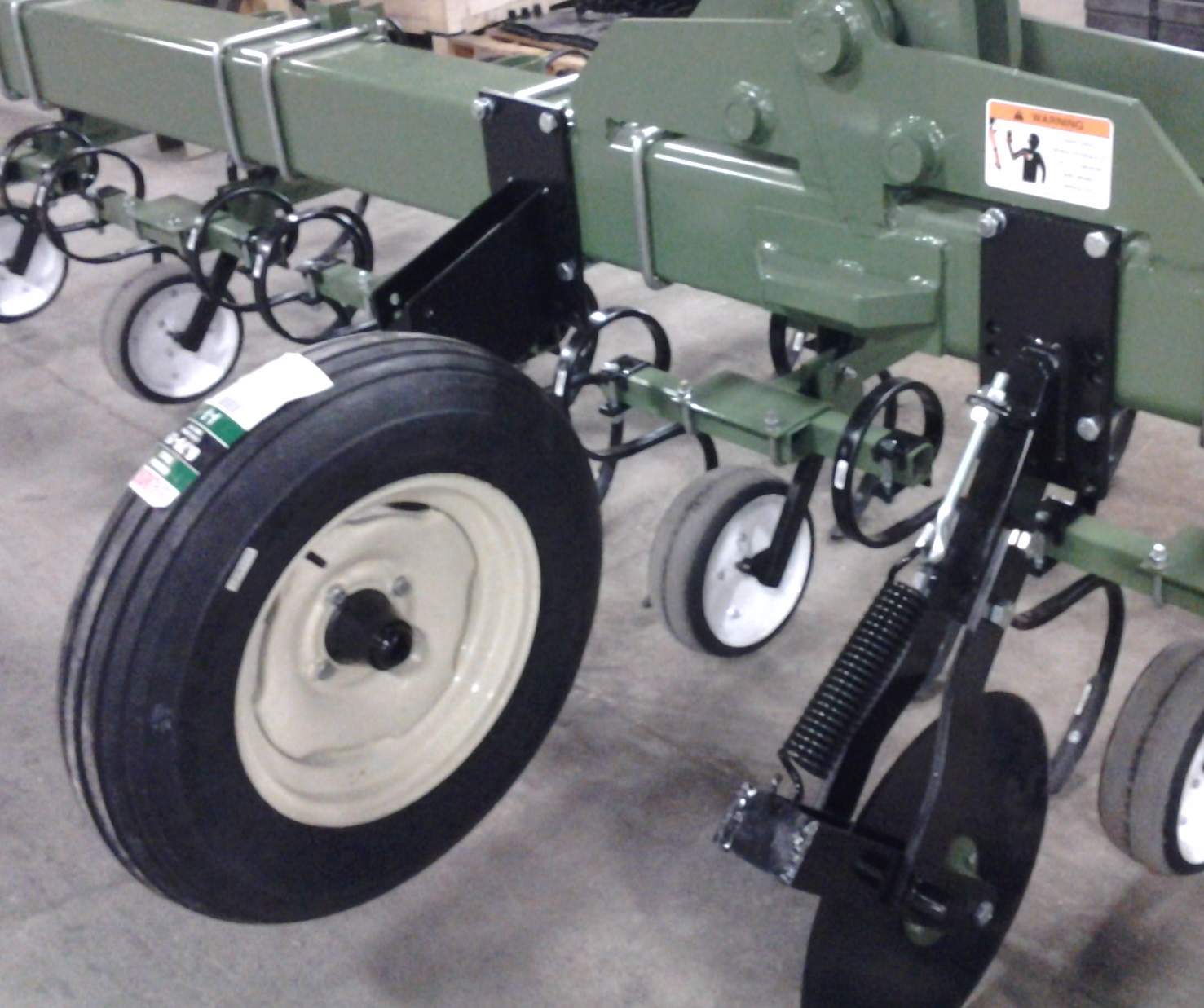

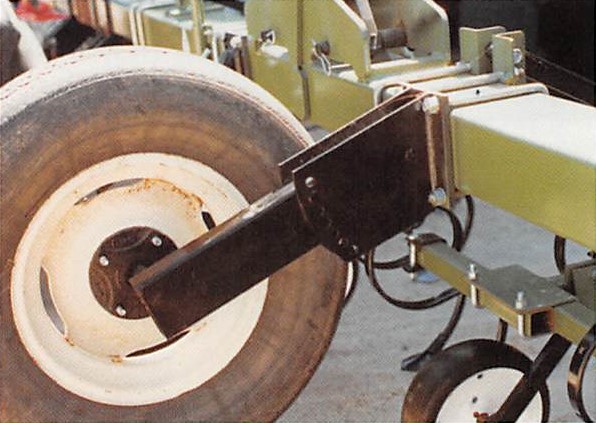

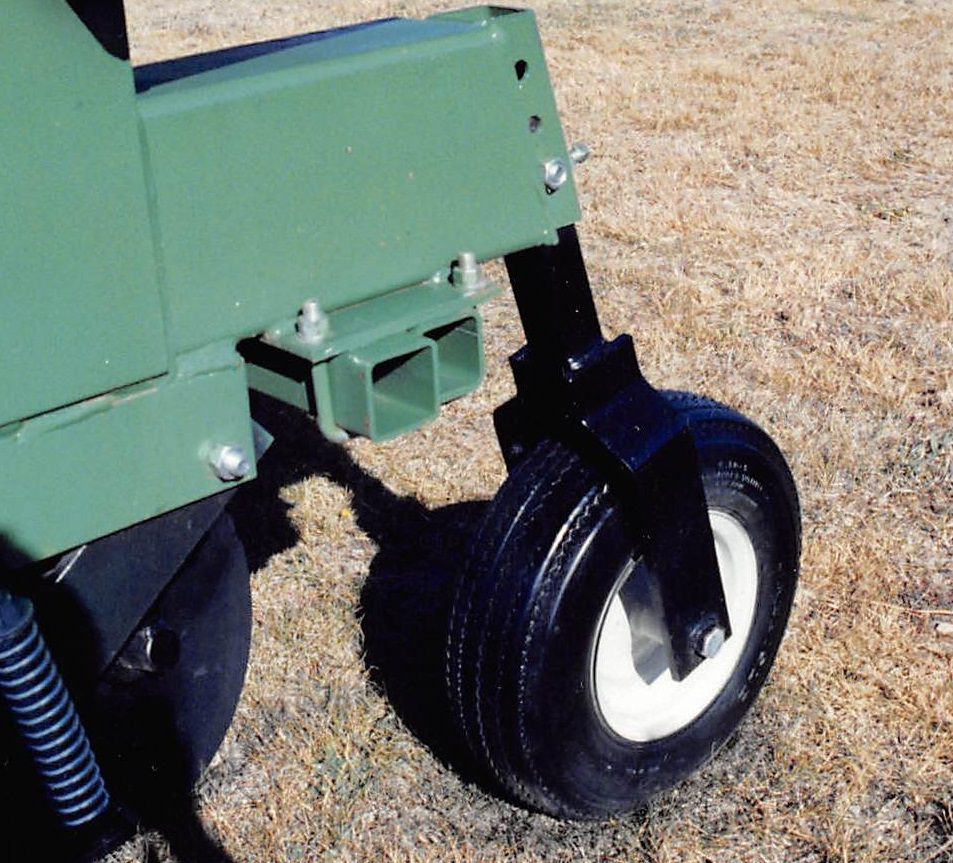

Standard equipment for 3-pt. hitch models includes Standard Danish Springtines, 2 3/4 inch Goosefoot Shovels, one pair of Manual Adjusting Gauge Wheels with 15 inch rims, less tires. Optional equipment for 3-pt. hitch models includes Heavy Duty Danish Springtines, 4 and 7 inch Shovels.

Standard equipment for pull type models includes Standard Danish Springtines, 2 3/4 inch Goosefoot Shovels, one pair of Manual Adjusting Gauge Wheels with 15 inch rims, less tires on main frame, Hydraulic Rockshaft, Pull Hitch with Radius Rod Adjustment, wing units also include one pair of Manual Adjusting Gauge Wheels with 13 inch rims, less tires on wings. Optional equipment for pull type models includes Heavy Duty Danish Springtines, 4 and 7 inch Shovels, 4x8 Transport Cylinder Kit, 3x8 Folding Wing Cylinder Kit.

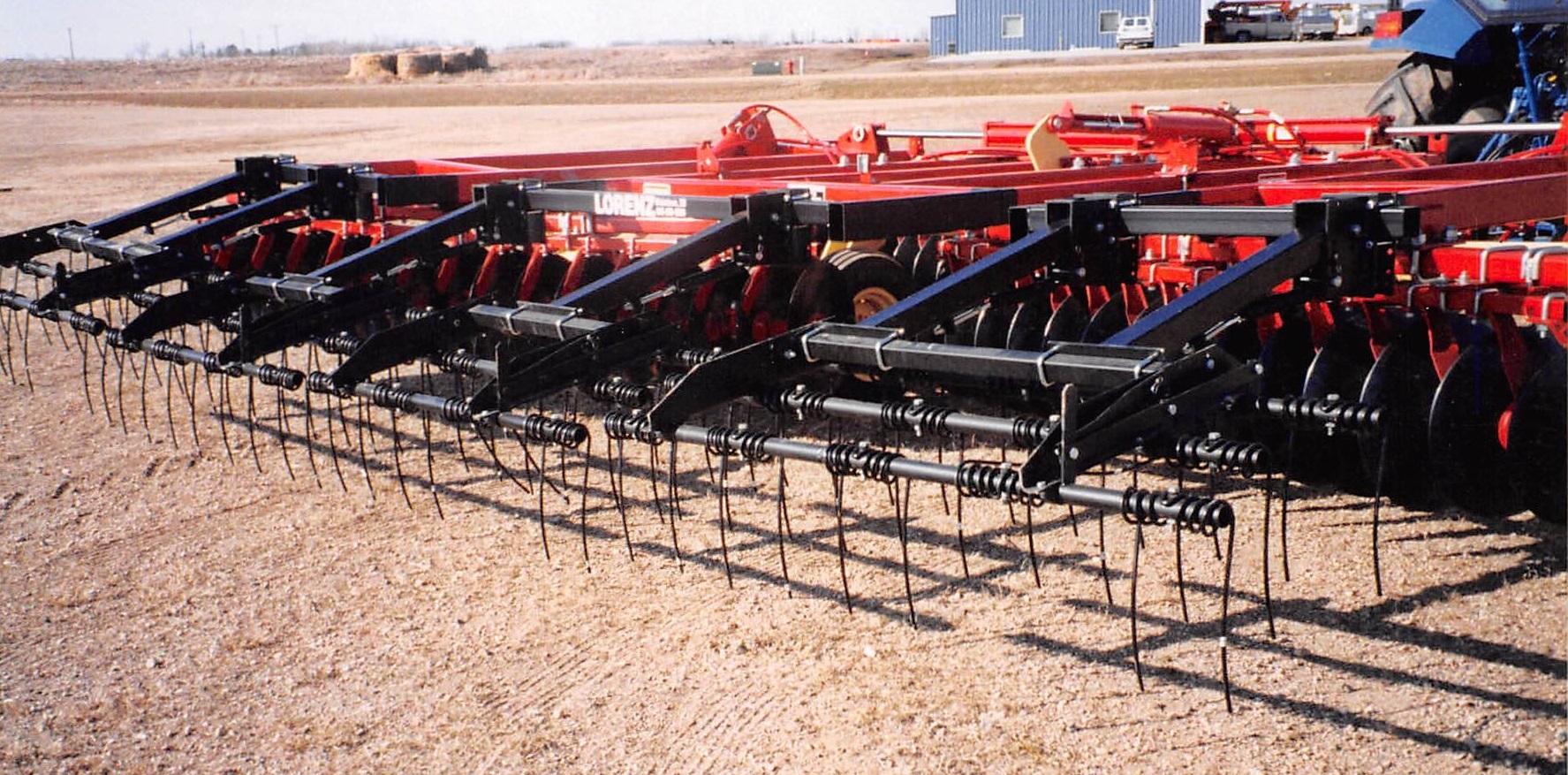

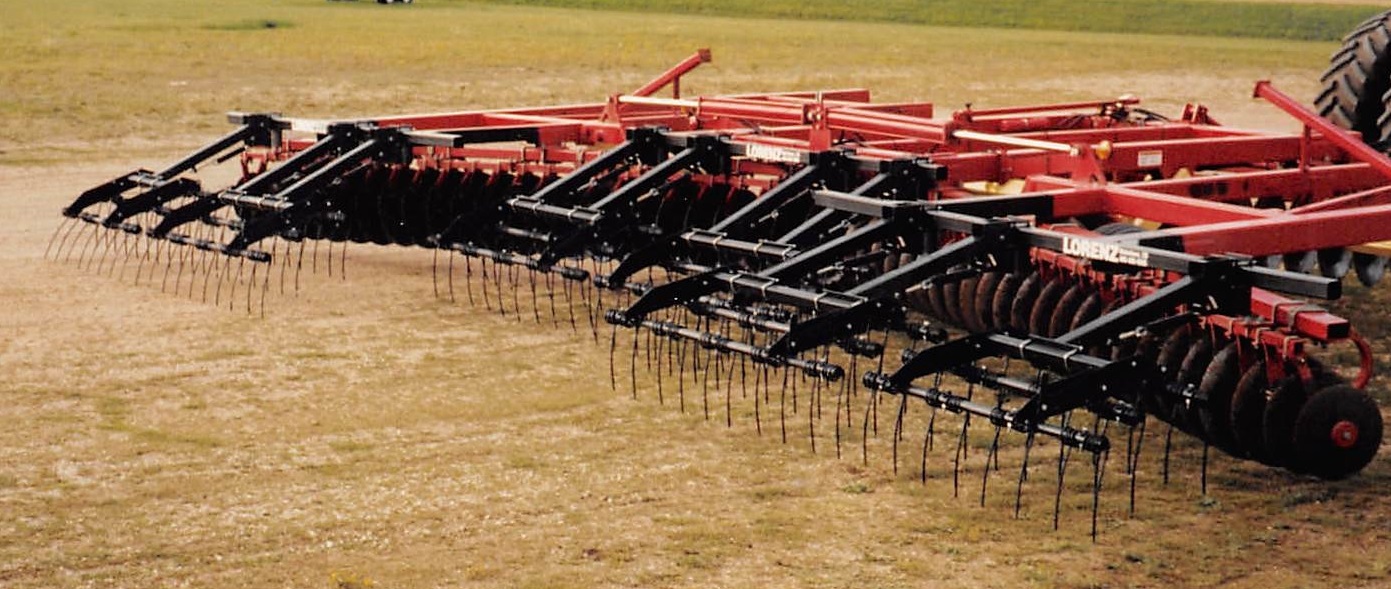

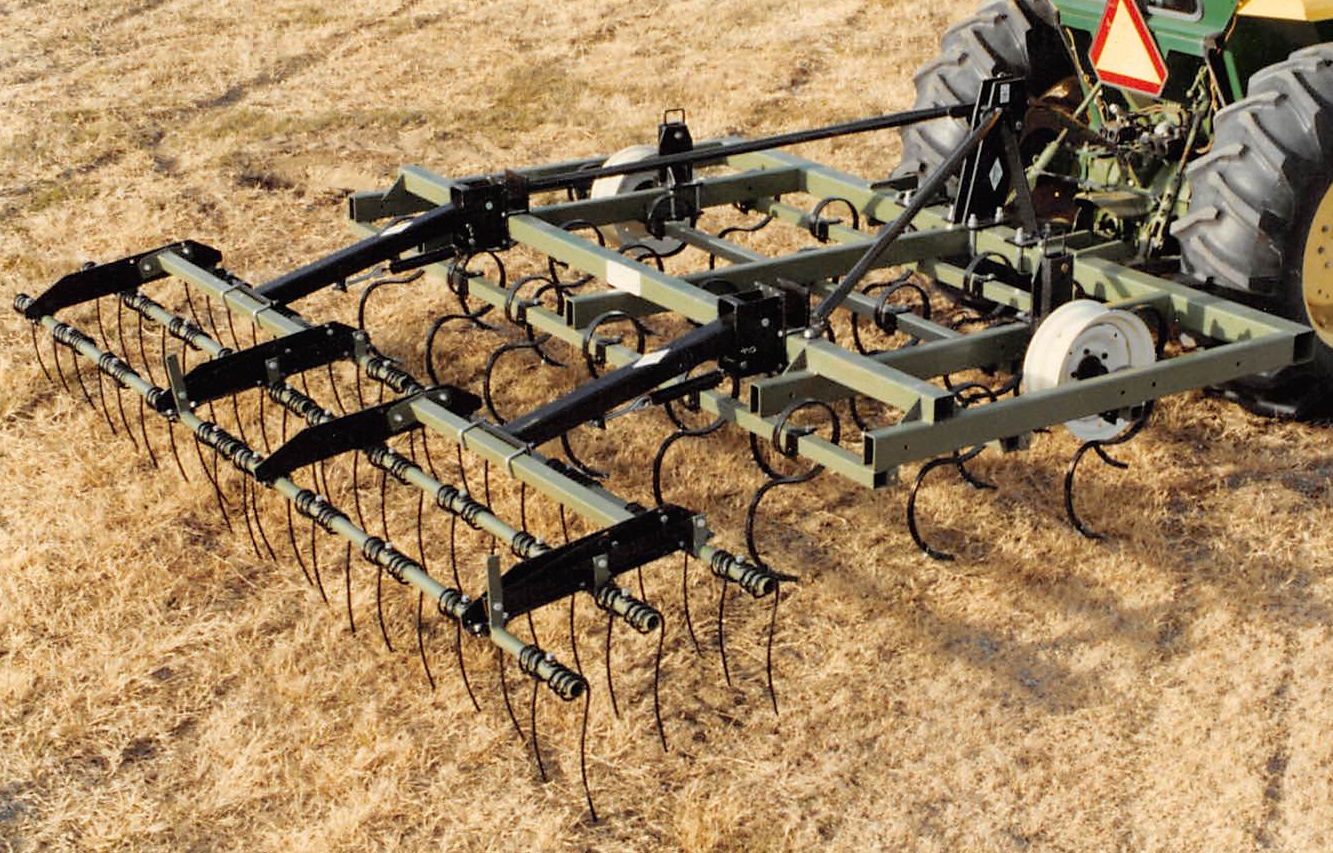

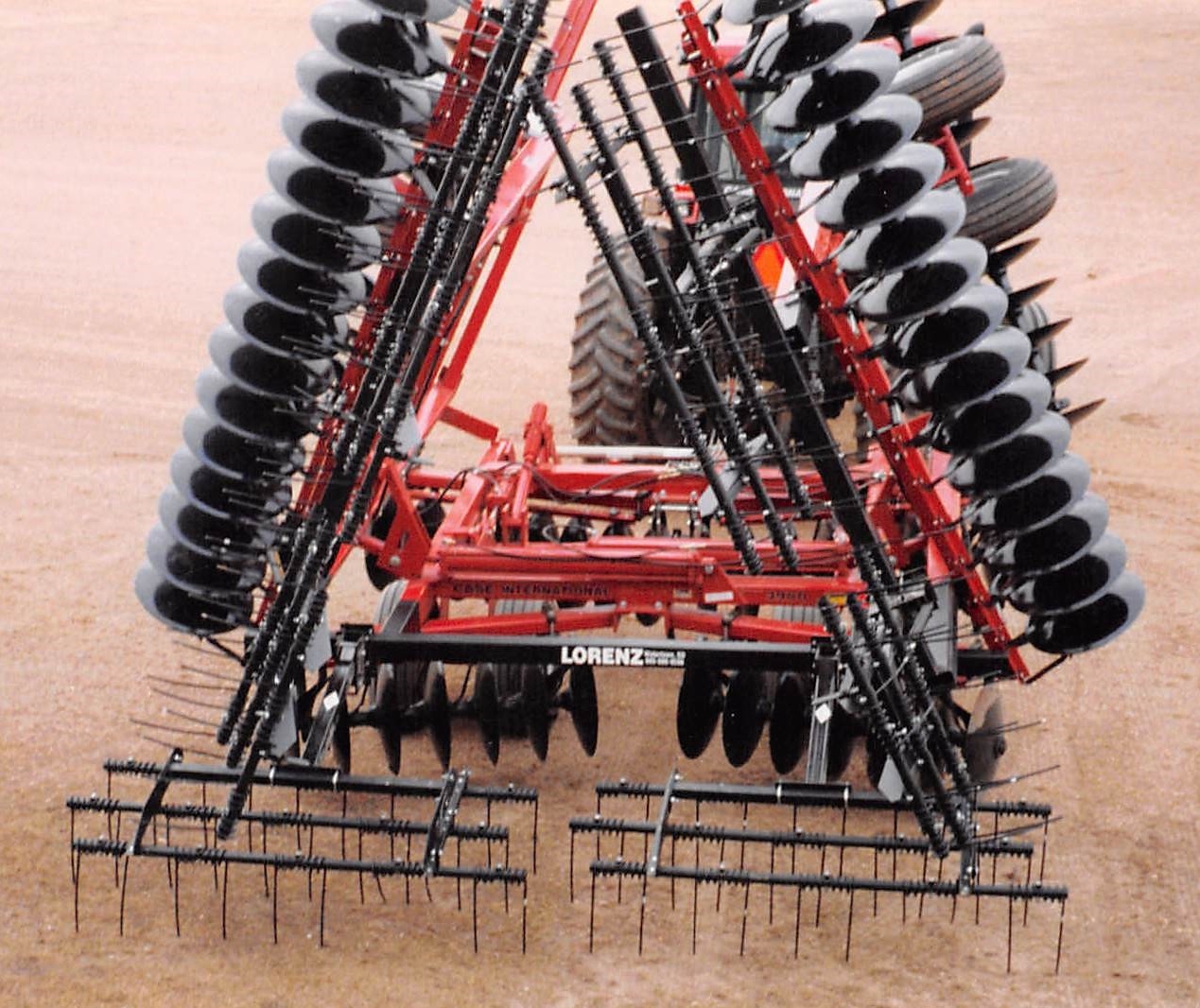

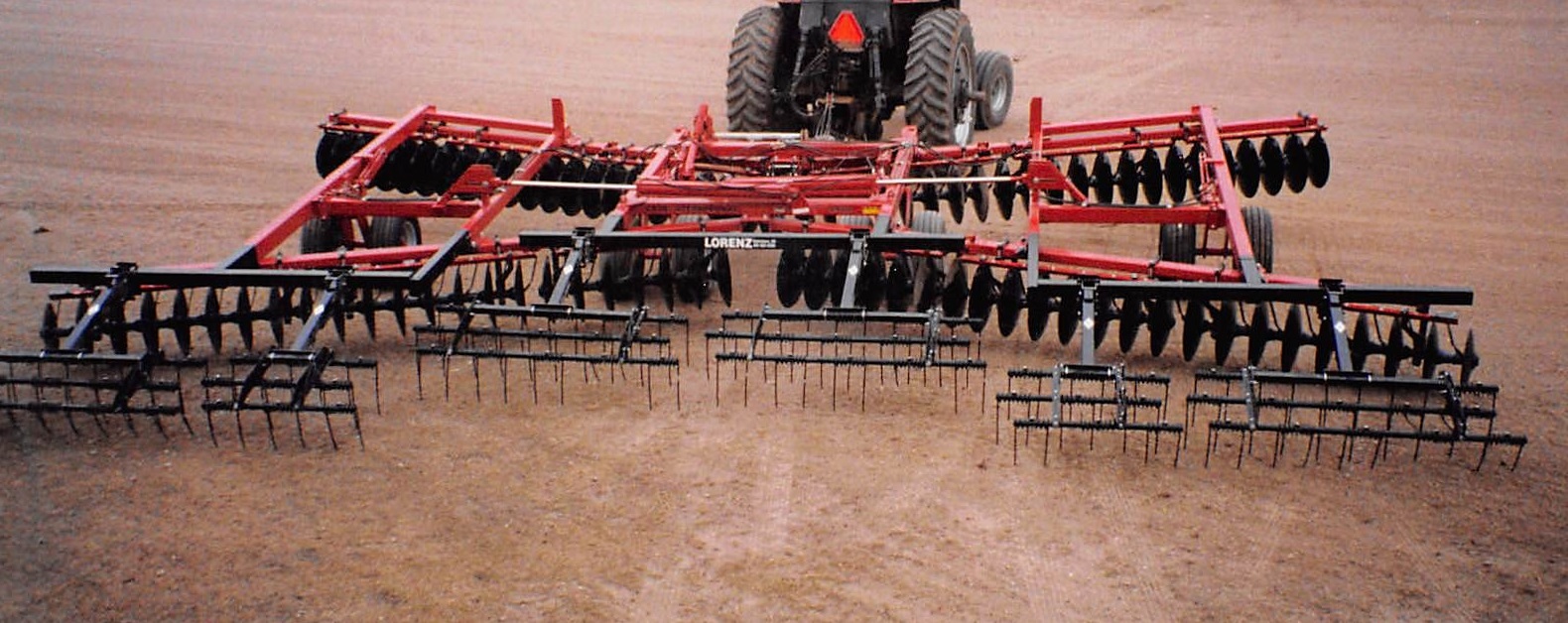

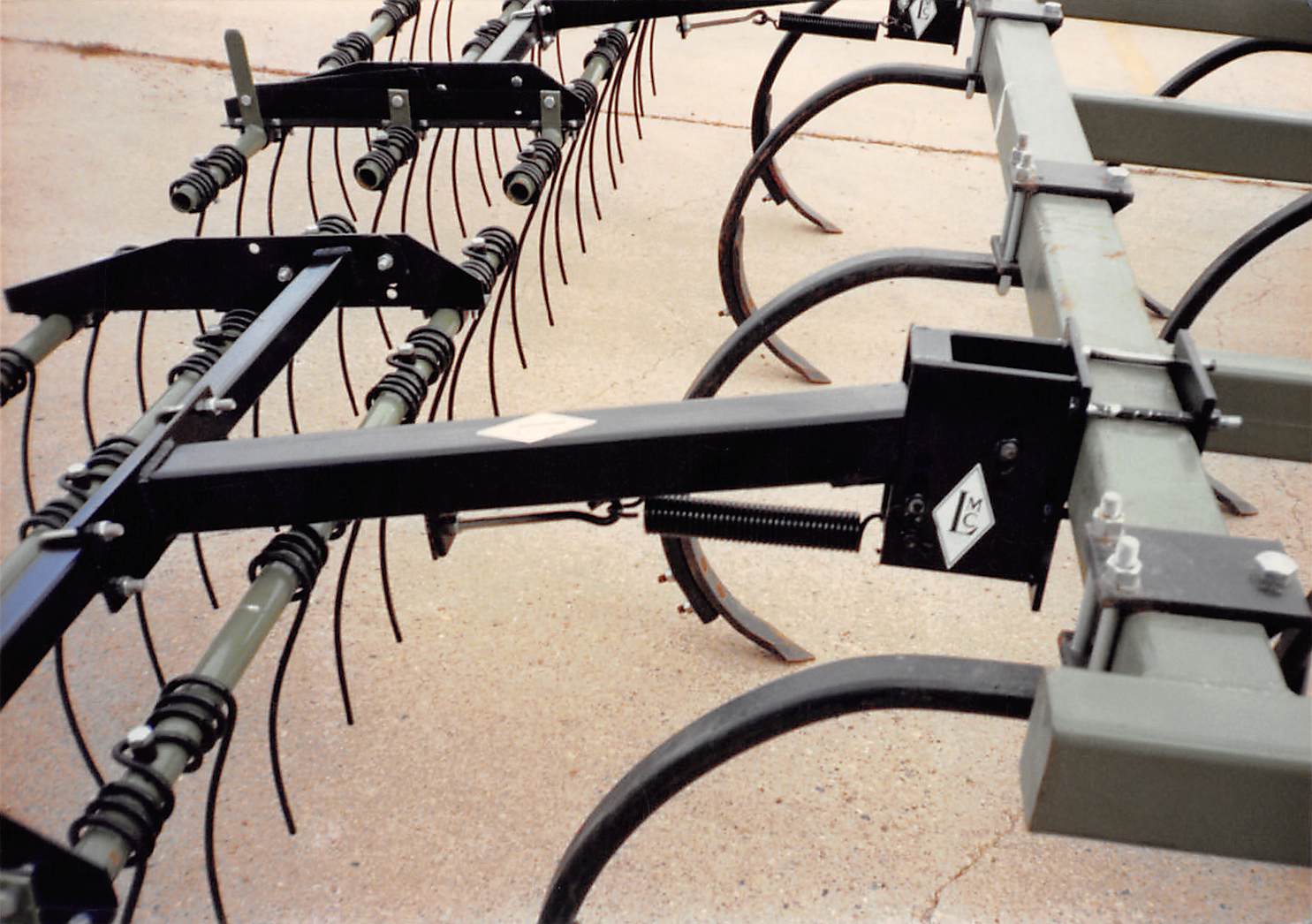

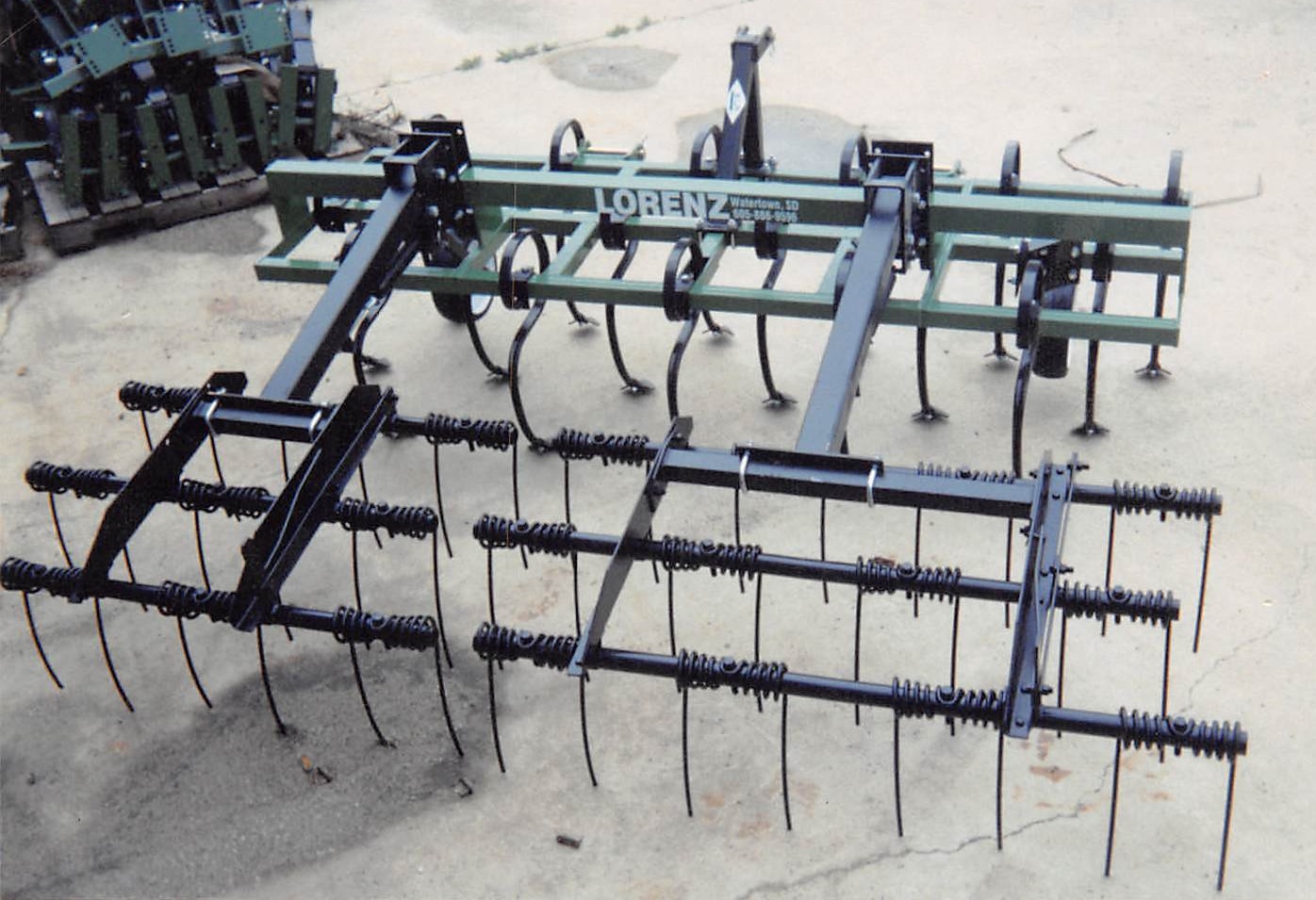

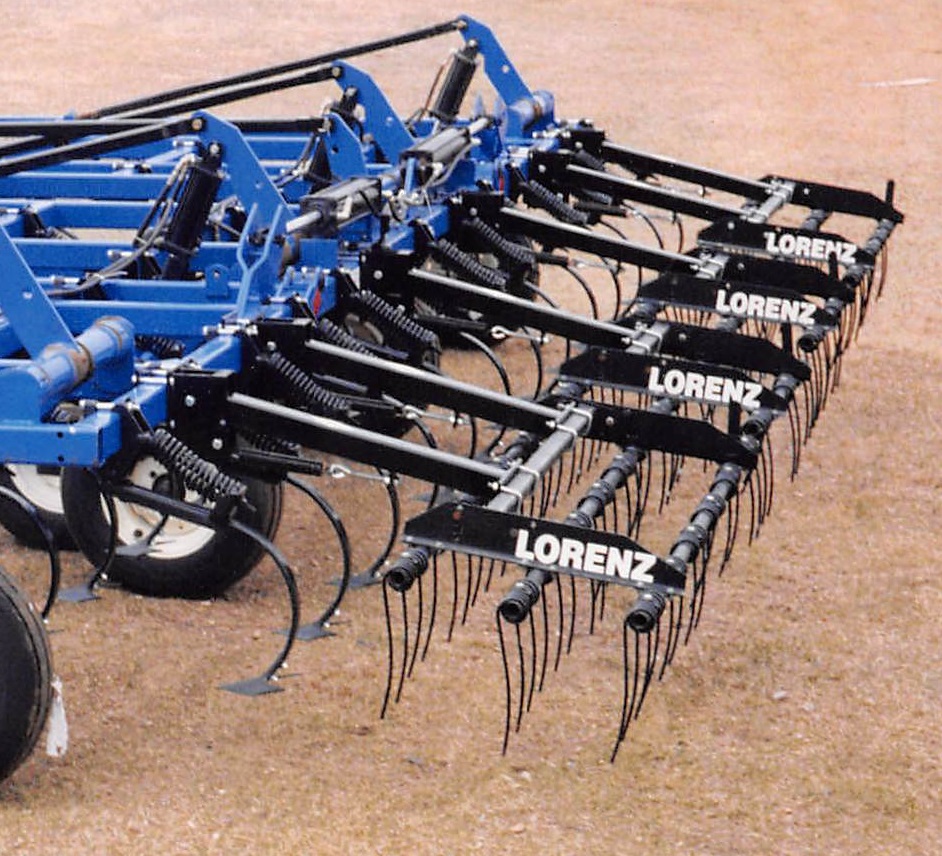

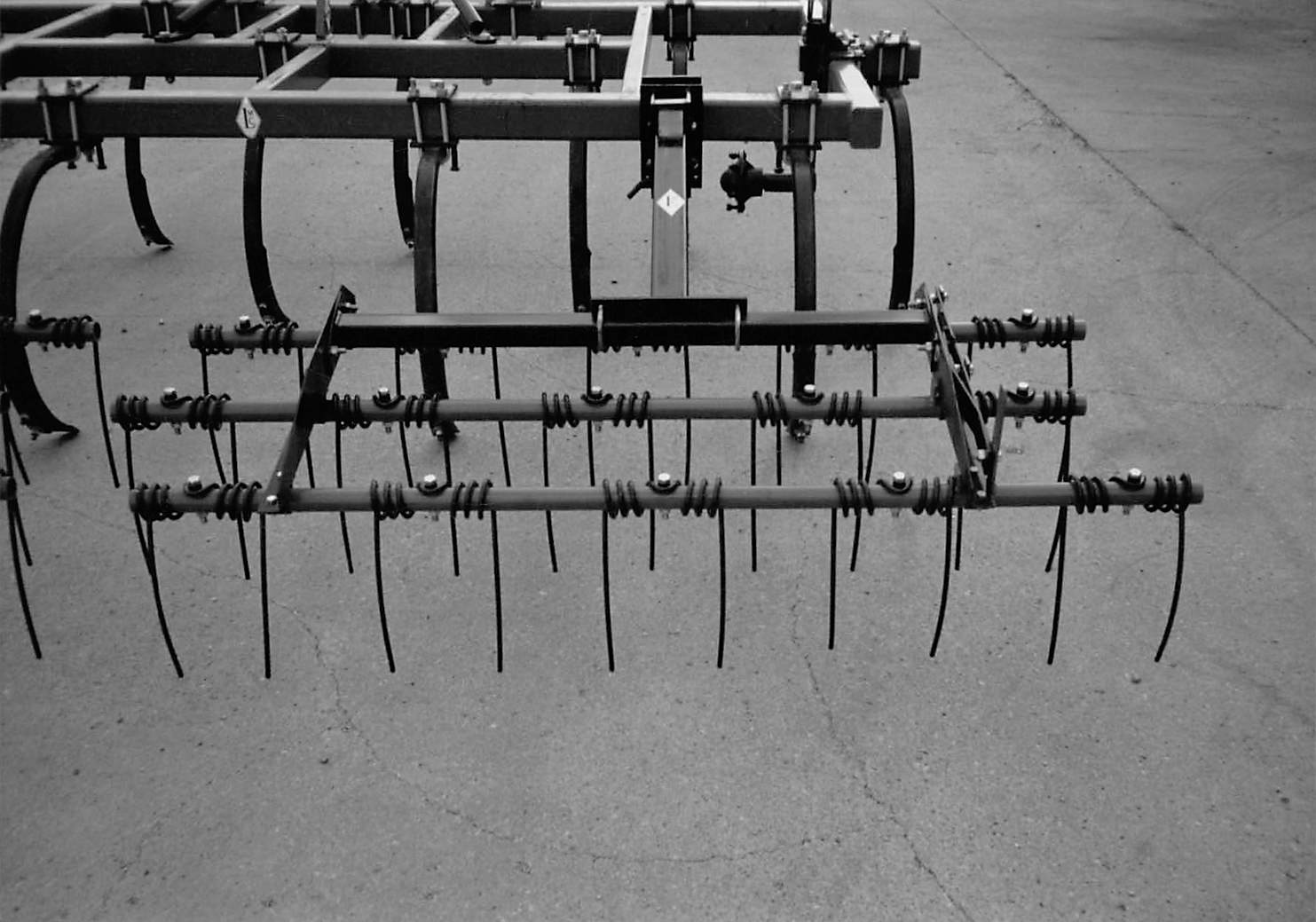

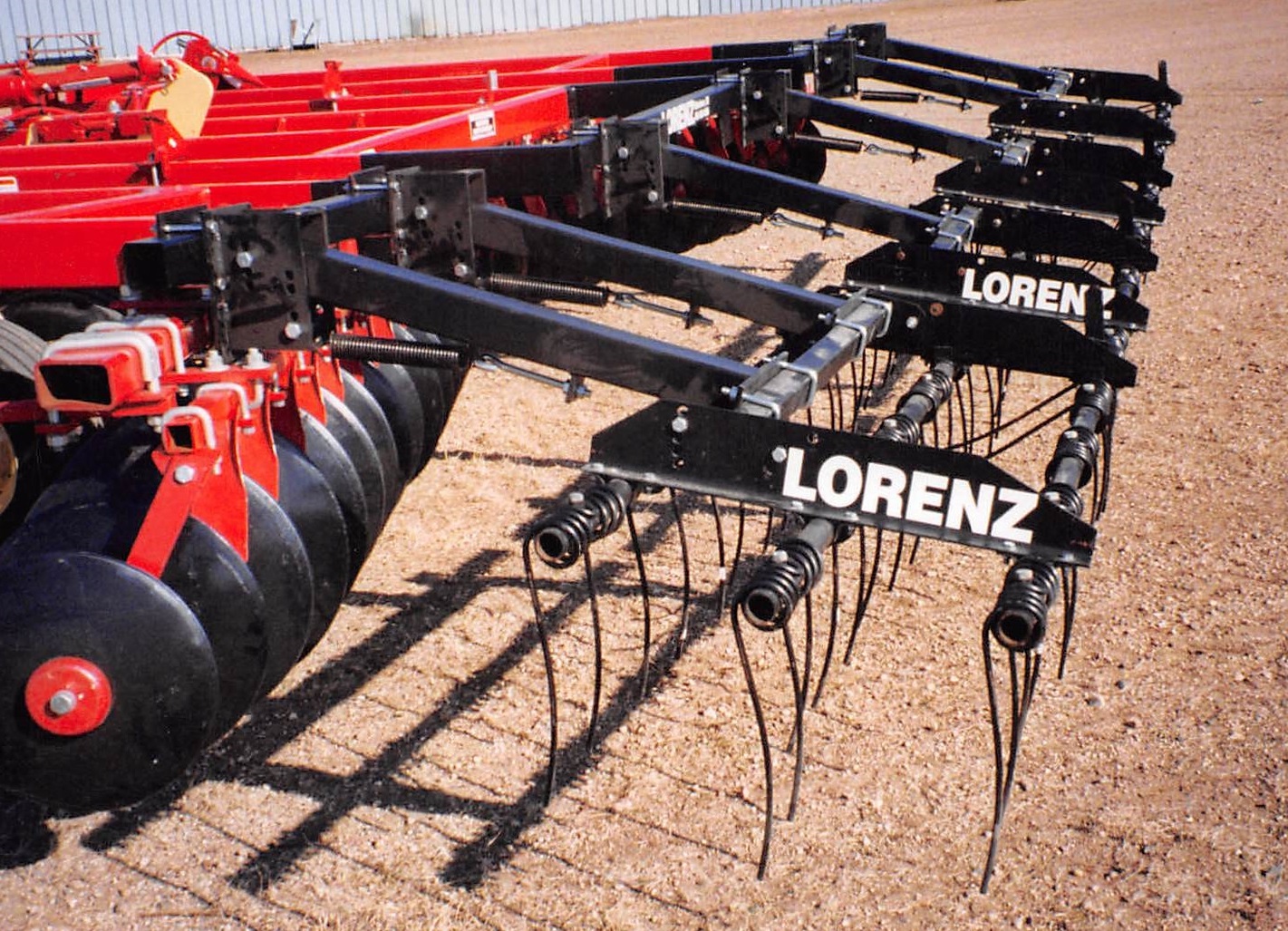

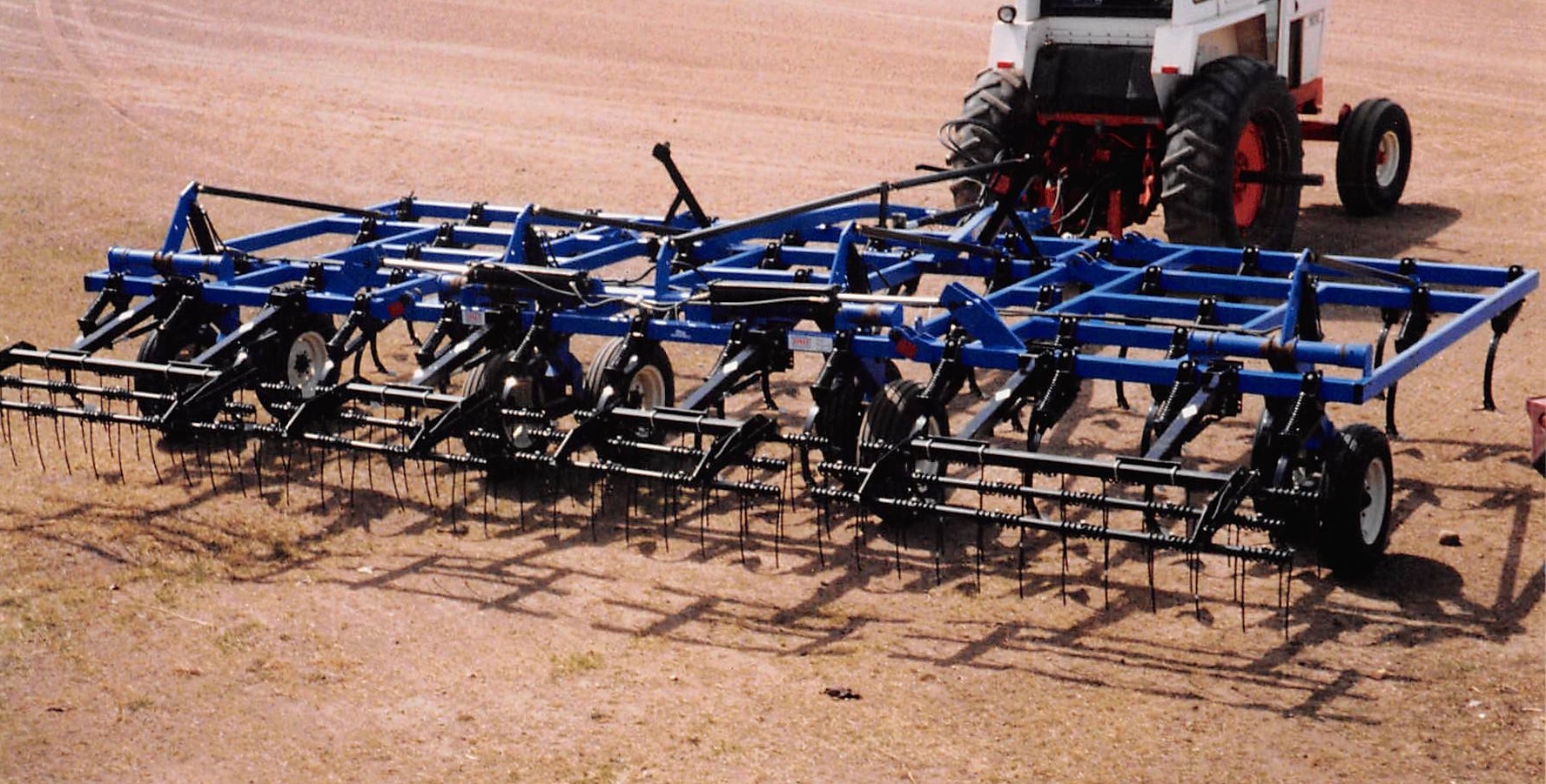

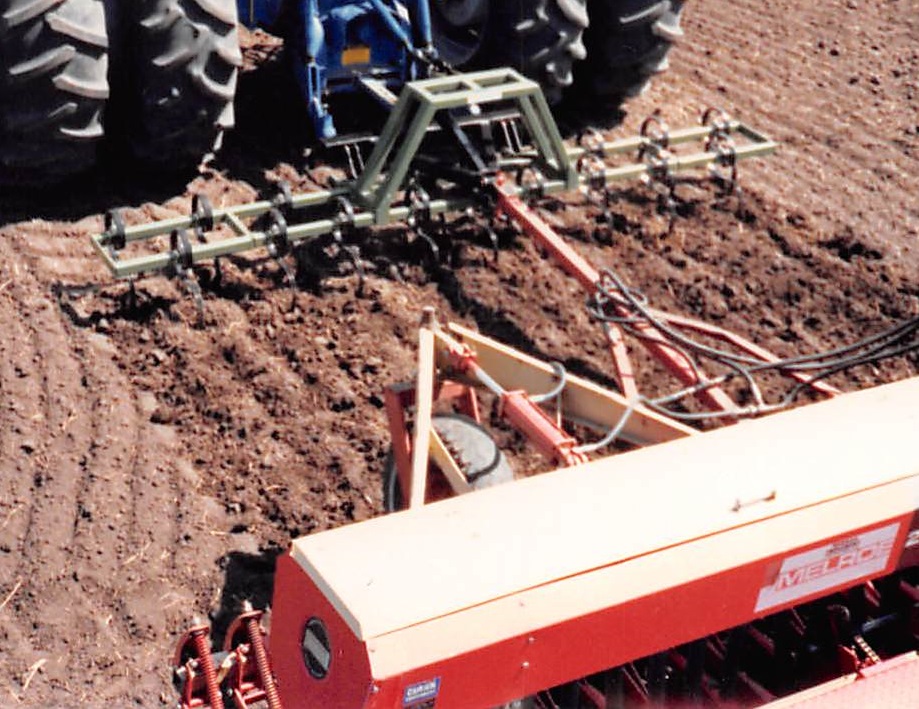

The Lorenz Harrow is available in 3-bar and 2-bar styles. The harrow sections are fully assembled at the factory and come with one (1) spring loaded, heavy duty drawbar arm as standard equipment. An extra drawbar arm is recommended for the LR5 and LR6 models. The 3/8" curved 16 inch harrow teeth allow for self cleaning upon reverse. Harrow sections fit most all field cultivators and chisel plow beams from 3 to 7 inches in diameter.

3-pt. Hitch Field Conditioner Models

Model	Working Width	Tines	Field Conditioner Components	HP*
7T001	7 ft.	18	7 ft. Center	35-45
7T002	9 ft.	22	9 ft. Center	45-60
7T003	11 ft.	24	11 ft. Center	60-75
7T067	13 ft.	30	11 ft. Center, 1-ft. Extensions	75-90
7T131	15 ft.	34	11 ft. Center, 2-ft. Extensions	85-105
7T195	17 ft.	40	11 ft. Center, 1-ft. and 2-ft. Extensions	100-125
* Recommended HP with Rolling Basket Crumblers

3-pt. Hitch Model Rolling Basket Combinations

Model	Field Cond Width	Coverage	Rolling Basket Components	Assembly Order
7T599	7 ft.	7 ft.	1 - 3 ft. Section, 1 - 4 ft. Section	3-4
7T600	9 ft.	9 ft.	1 - 4 ft., 1 - 5 ft. Sections	4-5
7T601	11 ft.	11 ft.	2 - 3 ft., 1 - 5 ft. Sections	3-5-3
7T607	13 ft.	13 ft.	1 - 3 ft., 2 - 5 ft. Sections	5-3-5
7T613	15 ft.	15 ft.	3 - 5 ft. Sections	5-5-5
7T619	17 ft.	17 ft.	2 - 5 ft., 1 - 4 ft., 1 - 3 ft. Sections	3-5-5-4
* Rolling Baskets available in single row and dual row

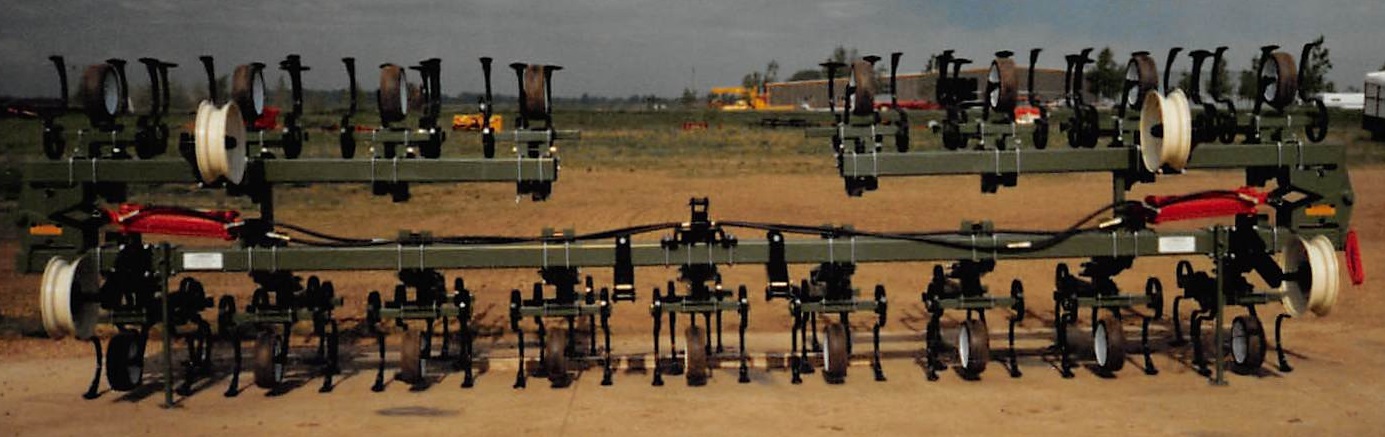

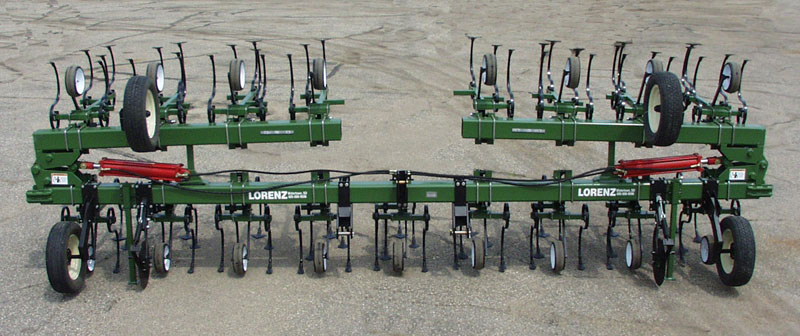

Pull Type and Folding Field Conditioner Models

Model	Working Width	Tines	Field Conditioner Components	HP*
7T121	13 ft.	29	13 ft. Center	75-90
7T185	15 ft.	35	13 ft. Center, 1 ft. Extensions	85-105
7T249	17 ft.	39	13 ft. Center, 2-ft. Extensions	100-125
7T313	19 ft.	45	13 ft. Center, 3-ft. Wings	110-135
7T320	21 ft.	51	13 ft. Center, 3-ft. Wings, 1-ft. Extensions	120-140
7T327	23 ft.	55	13 ft. Center, 3-ft. Wings, 2-ft. Extensions	130-155
* Recommended HP with Rolling Basket Crumblers

Pull Type and Folding Model Rolling Basket Combinations

Model	Field Cond Width	Coverage	Rolling Basket Components	Assembly Order
7T607	13 ft.	13 ft.	1 3-ft., 2 5-ft. Sections	5-3-5
7T613	15 ft.	15 ft.	3 5-ft. Sections	5-5-5
7T619	17 ft.	17 ft.	1 3-ft., 1 4-ft., 2 5-ft. Sections	3-5-5-4
7T627	19 ft.	19 ft.	3 3-ft., 2 5-ft. Sections	3-5-3-5-3
7T632	21 ft.	21 ft.	1 3-ft., 2 4-ft., 2 5-ft. Sections	4-5-3-5-4
7T640	23 ft.	23 ft.	1 3-ft., 4 5-ft. Sections	5-5-3-5-5
* Rolling Baskets available in single row and dual row

Mounted Harrow Sections

Model	Part No.	Coverage	Arms Included
LR3 Three-Bar	6Q943	40 inches	1 Arm
LR4 Three-Bar	6Q944	56 inches	1 Arm
LR5 Three-Bar	6Q945	72 inches	1 Arm*
LR6 Three-Bar	6Q946	88 inches	1 Arm*
* Additional drawbar arm recommended

Harrow Section Setup for Cultivator/Chisel Plow

Size of Cultivator or Chisel Plow	Harrow Coverage	Section Setup for Cultivator/Chisel Plow	Arms Used*
10 ft.	10 ft.	LR4 LR4	2
12 ft.	12 ft. 8 in.	LR5 LR5	2
14 or 15 ft.	15 ft. 4 in.	LR6 LR6	2
16 ft.	16 ft. 8 in.	LR4 LR5 LR4	3
16 1/2 ft. Fold up	18 ft.	LR3 LR4 LR4 LR3	4
18 1/2 or 20 1/2 ft.	20 ft. 8 in.	LR3 LR5 LR5 LR3	4
22 1/2 ft. Fold up with 12 or 14 ft. Center	23 ft. 4 in.	LR4 LR5 LR5 LR4	4
24 1/2 or 25 1/2 ft.	26 ft.	LR5 LR5 LR5 LR5	4
26 1/2 or 28 1/2 ft.	28 ft. 8 in.	LR6 LR5 LR5 LR6	4
28 1/2 or 30 1/2 ft.	31 ft. 4 in.	LR6 LR6 LR6 LR6	4
32 1/2 ft.	34 ft.	LR3 LR5 LR5 LR5 LR5 LR3	6
34 1/2 or 36 1/2 ft.	36 ft. 8 in.	LR4 LR5 LR5 LR5 LR5 LR4	6
36 1/2 or 38 1/2 ft.	39 ft. 4 in.	LR5 LR5 LR5 LR5 LR5 LR5	6
* Extra drawbar arm suggested on LR5 and LR6 harrow sections



---

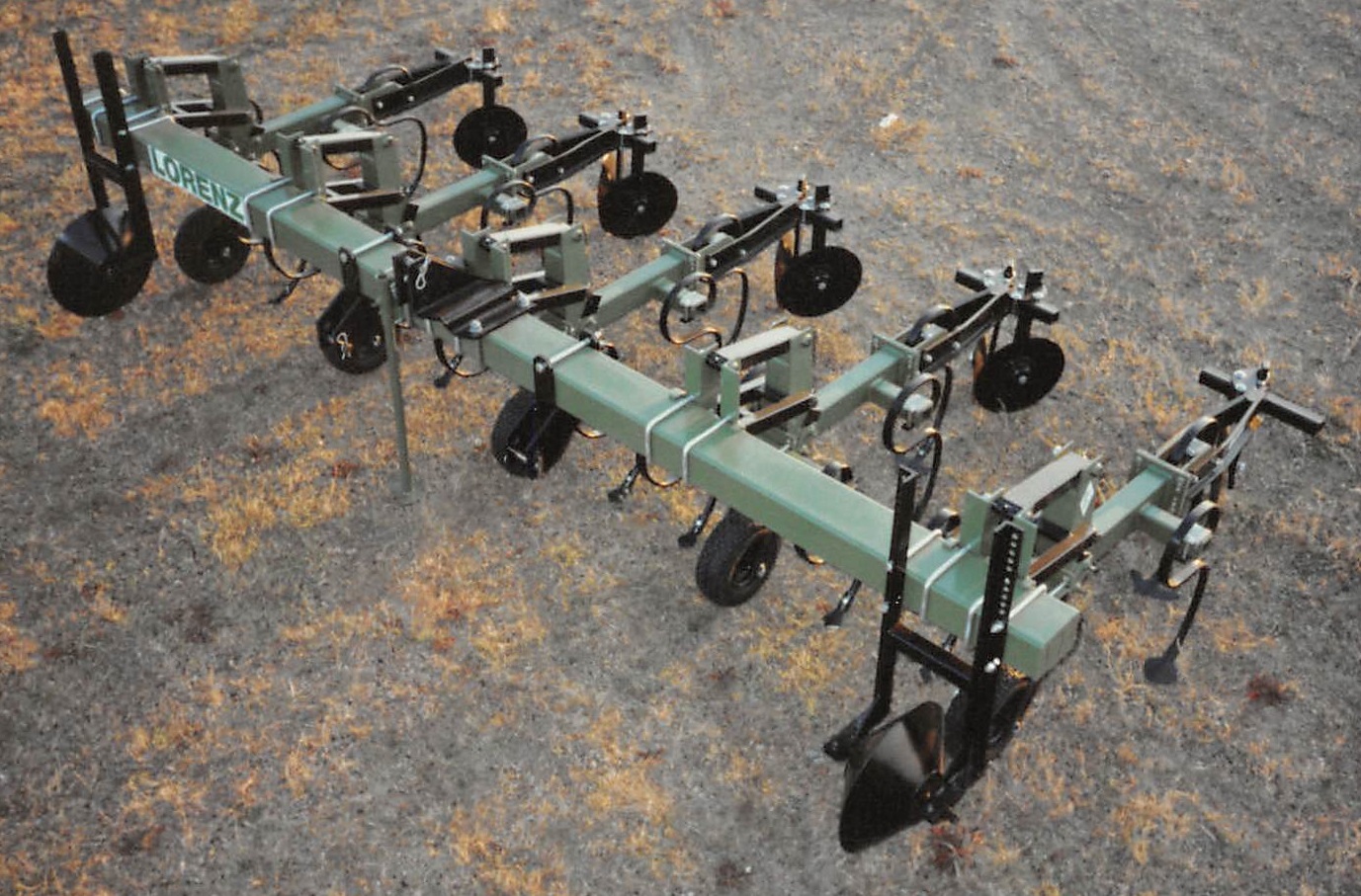

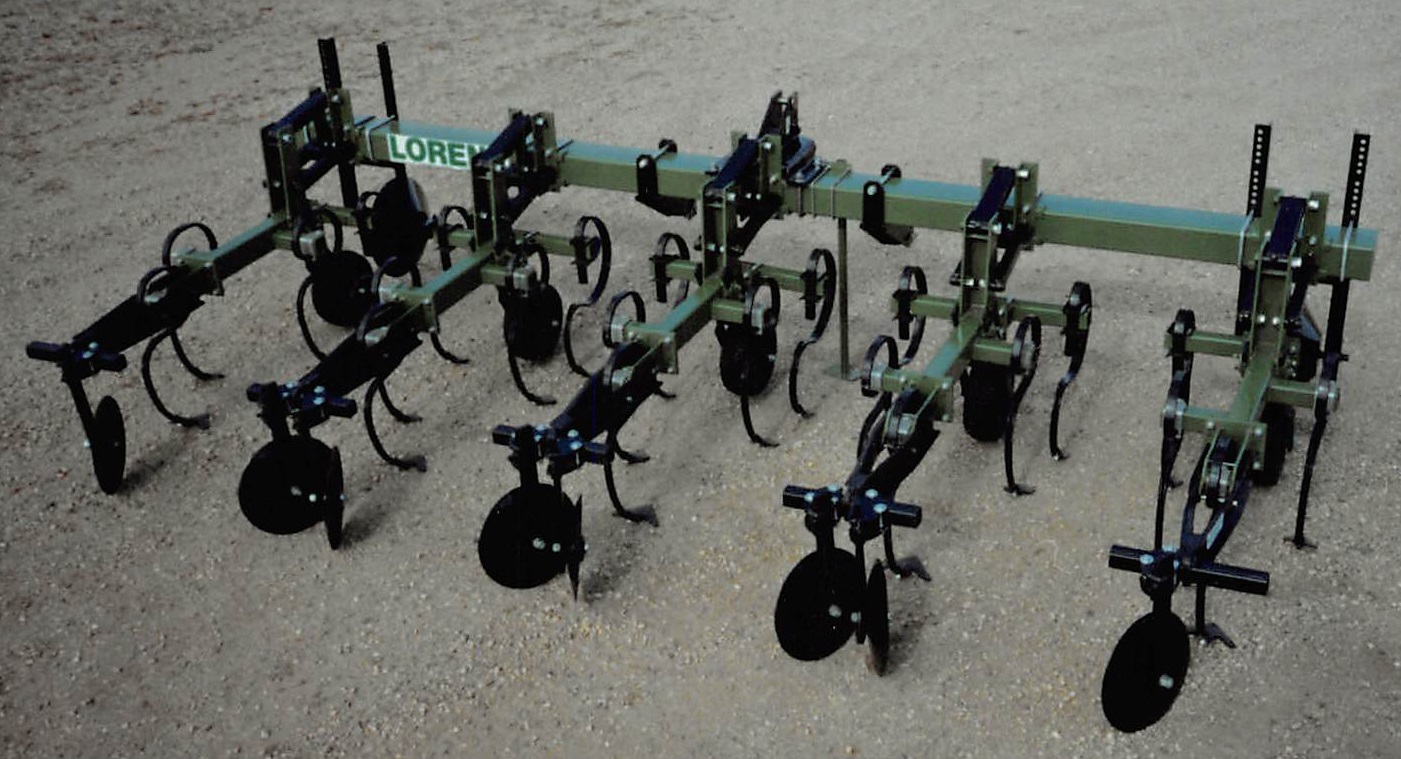

Potato Cultivators

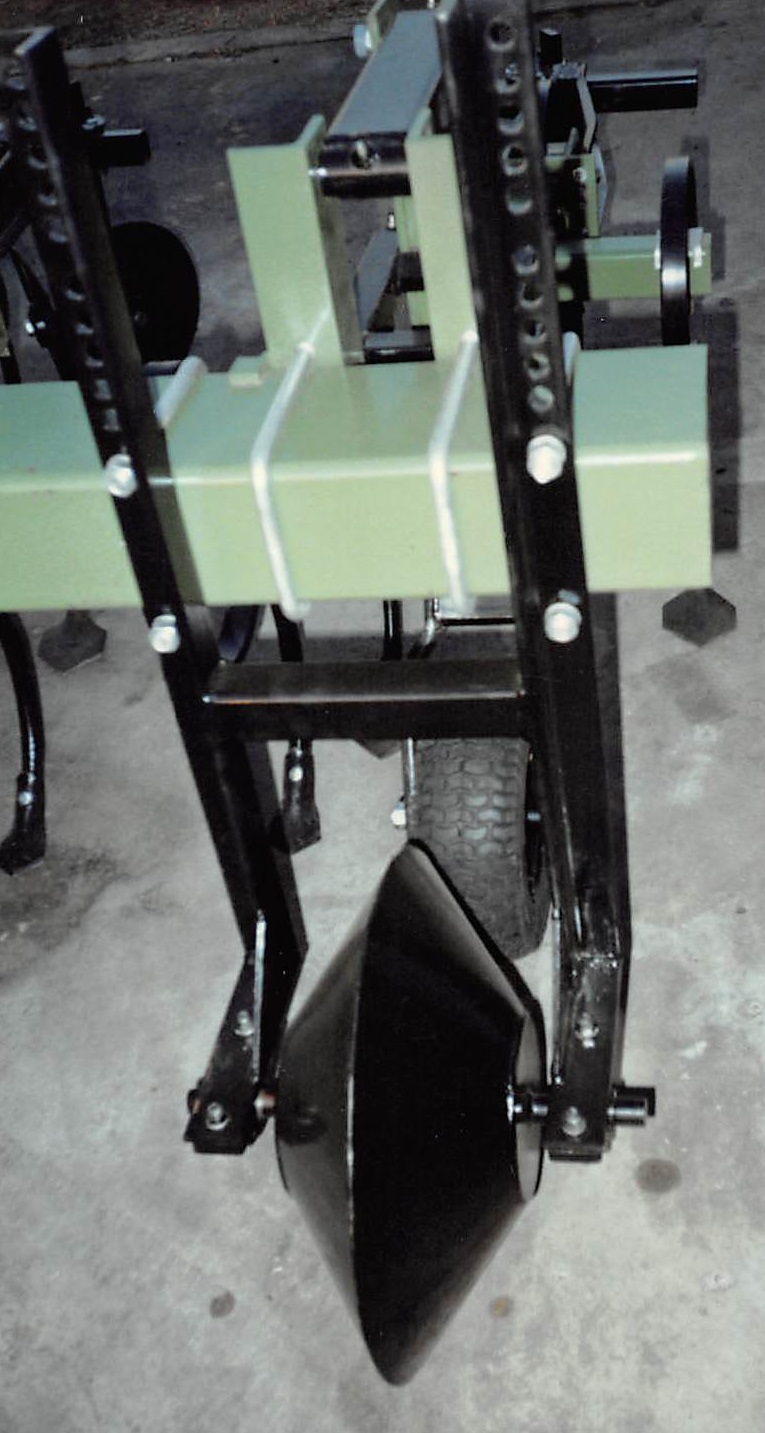

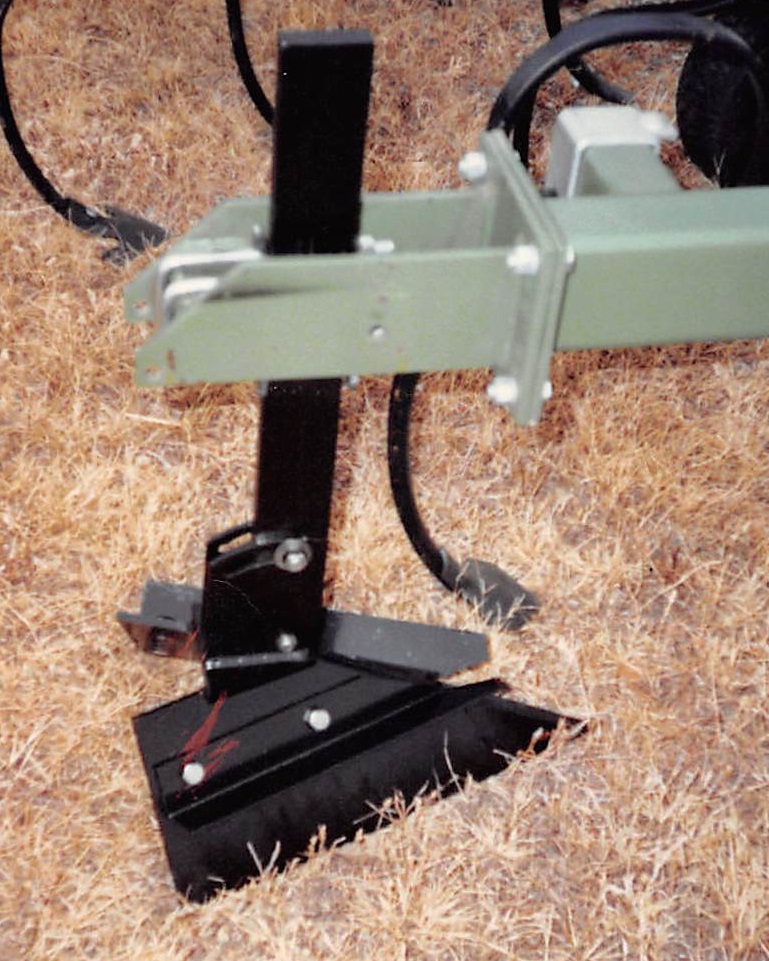

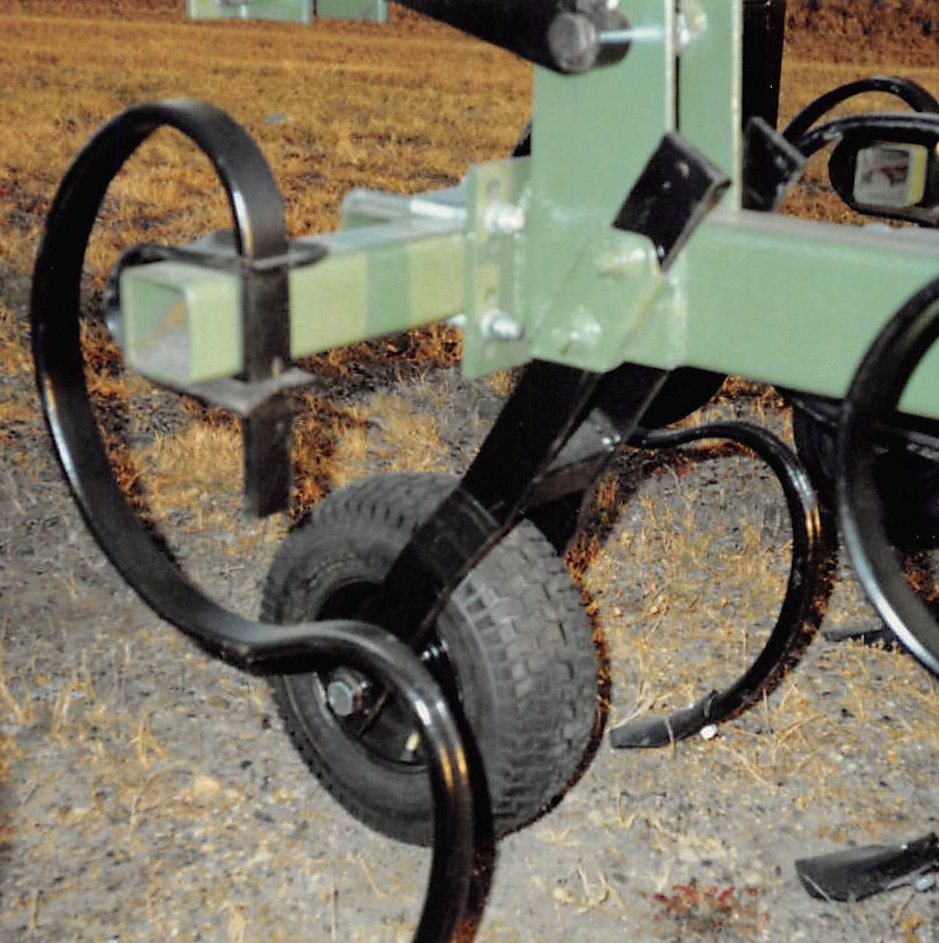

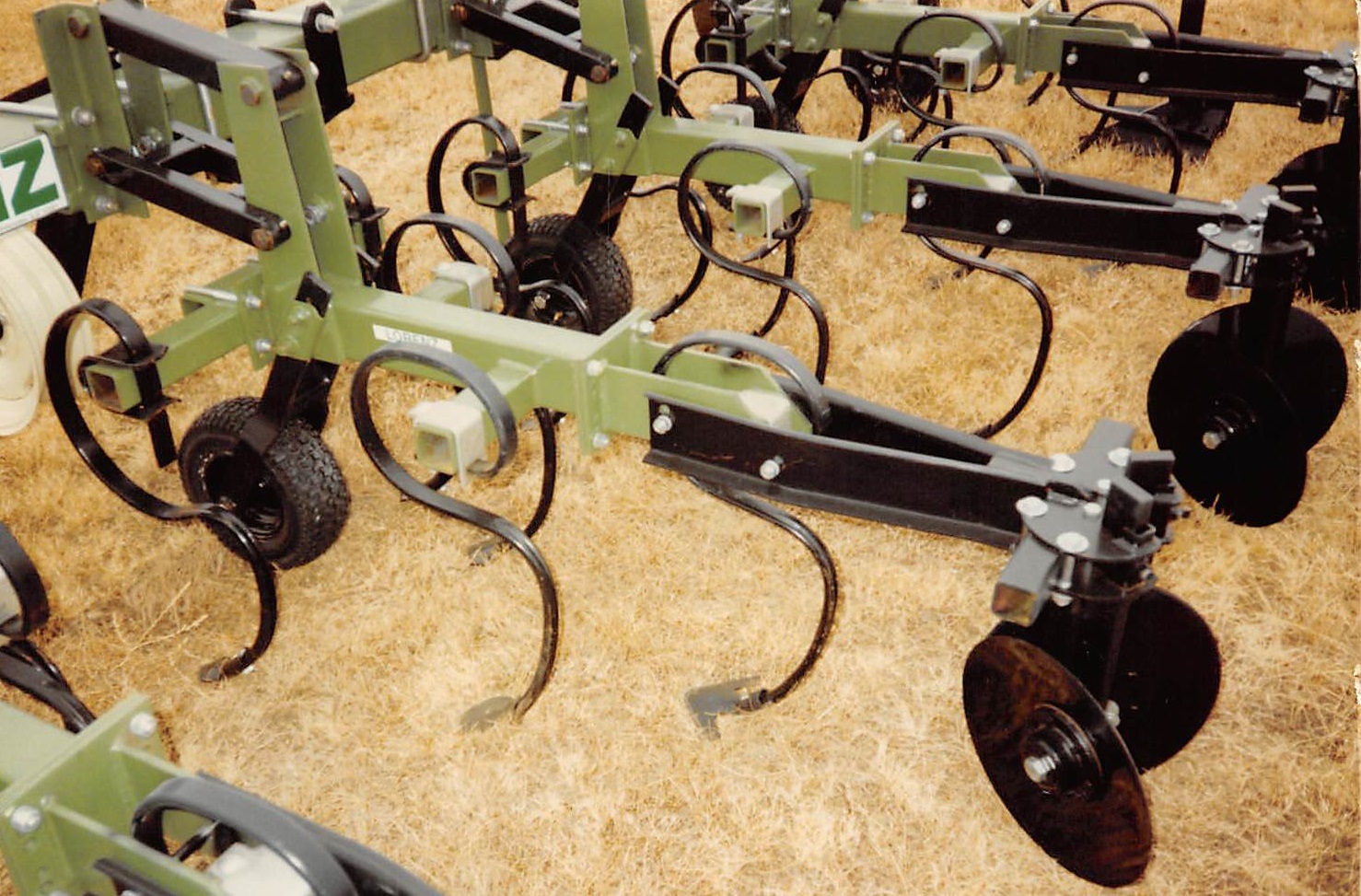

The Spud-O-Vator has a heavy 5"x 7" main tool bar with 3"x 4" gangs.  The Danish Tines are vertically adjustable, along with adjustable gauge wheels for keeping the tool bar level with the ground.  A gauge cone is offered as an option for precise cultivation. Call for sizes and options.
